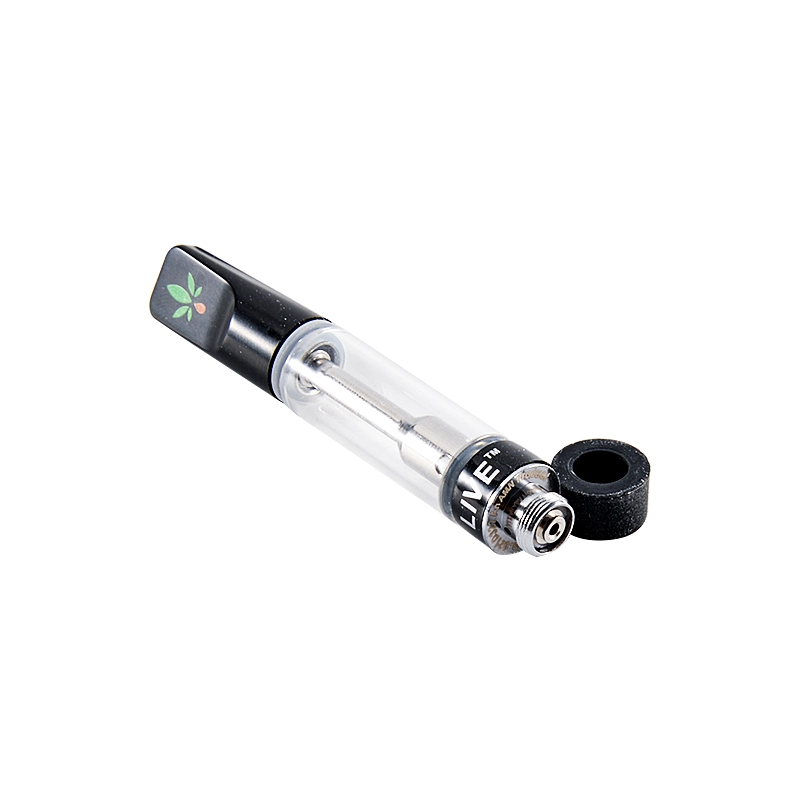

Refillable Cartridge Cleaning Steps: Safe, Non-Invasive Fixes

If your refillable 510-style cartridge tastes muted, feels tight on the draw, or won’t wick like it used to, don’t rush to disassemble the hardware. Most issues come from residue at the mouthpiece, condensation in the airway, or thick oil at the intake ports—all solvable with safe, non-invasive steps. This TOFU guide explains what you can do at home without opening the cart or touching the coil, then shows how to verify results and when to stop and seek a replacement.

Specs Table

Device Dimensions & Weight

Cartridges vary by brand (0.5 g / 1.0 g tanks; standard 510 thread). You don’t need exact millimeters to clean them, but it helps to know whether yours is a top-fill or bottom-fill design and whether the mouthpiece is removable (most are press-fit and should not be pried off once filled).

E-liquid Capacity & Chamber Structure

Think of the cart as reservoir → intake ports → coil → chimney → mouthpiece. Residue accumulates at the mouthpiece tip and chimney; thick oil can creep into the intake ports and slow wicking. Your goal is to clear those areas without flooding the coil.

Battery & Charging Specs

Cleaning is off-device, but you’ll use a battery briefly for low-temp “dry clears.” Any regulated 510 battery with low-voltage / preheat is fine. Avoid high-power box mods; you’re not trying to burn residue—just warm airways gently.

Coil & Heating Element

Modern refillable carts use porous ceramic with a micro-heater. Never soak or flush the coil with liquids. Warming the airpath, not the coil itself, is the key to non-invasive cleaning.

Screen Features

N/A for most 510 batteries. If your pen has a small display or LED, you only need battery level and preheat indicator.

Note: Do not remove seals, pry mouthpieces, or introduce fluids into the tank. The steps below keep the cartridge intact.

Unique Features

• Non-invasive first: External wipes, airway swabs, and gentle heat—not disassembly.

• Household tools: Cotton swabs, lint-free wipes, 70% isopropyl for exterior only, warm water for mouthpiece tip (detached tips only), a hair dryer on cool-warm setting.

• Time-boxed: Each step takes 30–90 seconds; stop if performance doesn’t improve after one pass.

What you’ll need (pick 5–6 items):
Cotton swabs; lint-free wipes; wooden toothpick (flat tip); canned air (optional); 70% isopropyl alcohol (for exterior metal/thread only); mild dish soap (tip only if detachable); paper towel; small zip bag; hair dryer on lowest heat; nitrile gloves.

Switch Mechanism & Risks

Why clogs happen

• Condensation forms in the chimney during cool environments and short puffs.

• Viscous oil thickens in cold weather and at low battery voltage.

• Back-flow after hard draws can pull oil into the mouthpiece bore.

Risks to avoid vs “invasive” fixes

• Do not drip alcohol, water, or flavorings down the chimney—flooding cracks seals and ruins the wick.

• Do not torch, bake, or microwave a cart. Thermal shock fractures the glass or tank.

• Do not pry caps on filled carts; press-fit seals are single-use.

QC implications for you (the user)

Non-invasive methods keep the seal stack intact, avoid coil shock, and reduce re-clog odds. If issues persist after a clean cycle, the cart is likely end-of-life or damaged.

Safety & Compliance Standards

This is a hardware hygiene guide, not a health or regulatory claim. Follow common-sense safety:

• Use 70% isopropyl only on external metal and threads; keep liquids out of the tank.

• Work away from flames; ventilate. Alcohol is flammable.

• Wear nitrile gloves if you’re sensitive to residues.

• If the cart cracks, smells burnt at low power, or leaks after cleaning, retire it.

Transport & Packaging Compliance

Not shipping anything? Great—skip hazmat rules. For on-the-go storage:

• Keep carts upright in a small zip bag to prevent mouthpiece residue.

• Avoid hot dashboards and freezing temps; temperature swings thicken oil and invite leaks.

• Cap the mouthpiece with a silicone cover during travel to reduce dust and lint.

Quality Control Checklist

Use this mini-checklist before and after cleaning:

• Exterior: Mouthpiece free of lint; chimney visibly clear; no cracks.

• Threads: 510 threads clean; center pin dry; no oil film.

• Draw test: Gentle pull with battery off—airflow should feel open, not whistling or blocked.

• Warm-up test: Two 1.5–2 s preheats at low voltage; no gurgle or spitback.

• Flavor test: Short 1–2 s puff. If scorched taste persists at low voltage, stop.

Authenticity & Verification Steps

• Source check: Buy carts from reputable channels; counterfeit tanks clog more.

• Visual markers: Uniform glass/tank seam, aligned mouthpiece, even intake ports.

• Record: If you refill, note the oil viscosity and ambient temperature on the bag; patterns help prevent future clogs (e.g., thin slightly before refilling if your oil is extremely viscous).

2025 Update

• Thicker winter oils: Expect more condensation. Keep a cool-to-warm hair-dryer step in your routine.

• Low-temp trend: Many users prefer low-voltage puffs; pair with slightly longer warm-up to prevent pooling.

• Refill discipline: Wipe the outside after every refill. Residue on threads is the #1 culprit for sticky buttons and poor contact.

References

This article focuses on good-practice hardware care. For any cleaning solvent or chemical you use externally, read its product safety label. For battery handling, follow the instructions included with your 510 battery (manufacturer’s user guide).

Step-by-Step: Safe, Non-Invasive Cleaning

1. Power down & cool
   Turn the battery off. Let the cartridge sit 5–10 minutes at room temp so thick oil relaxes.

2. Mouthpiece wipe
   Wrap a dry lint-free wipe around a flat toothpick; gently clean the inside rim of the mouthpiece. If your mouthpiece is detachable by design (many aren’t), remove it and rinse just the tip with warm water and a tiny drop of mild soap; dry completely before re-installing. Do not allow water into the chimney.

3. Chimney swab (dry only)
   Use a dry cotton swab to touch the entrance of the chimney. Rotate lightly to pick up condensation. Do not push deep or bend the swab—snapped fibers can lodge inside.

4. Thread & contact clean
   Lightly moisten a corner of a wipe with 70% isopropyl and clean the 510 threads and battery contact. Keep alcohol away from the tank and intake ports. Let it fully air-dry (30–60 s).

5. Gentle warm-up (no inhaling)
   Attach the battery. Use low voltage or preheat for 1.5–2 s, twice, with no draw. This thins oil near the intake ports without flooding the coil.

6. Air-only clears
   With the battery still at low power, perform 1–2 very short puffs (≤1 s). If you hear gurgle, stop; remove the cart and tip it mouthpiece-down onto a paper towel for 2–3 minutes so excess condensate drains.

7. Re-test draw
   Battery off again; take a gentle test draw. Airflow should feel smoother. If still tight, repeat Steps 2–6 once. Persistent blockage usually means internal flooding or physical damage—replace the cart.

8. Preventive habits

• Shorter, steadier puffs at low-to-moderate voltage.

• Keep carts upright; cap the tip when pocketing.

• Wipe threads every refill; never overfill (leave headspace above the chimney).

Summary & CTA

Non-invasive cartridge cleaning comes down to three ideas: keep liquids out of the tank, use gentle warmth—not heat, and clean the places you actually touch—mouthpiece, chimney entrance, and threads. If a cart still tastes burnt at low power or stays tight after one careful cycle, it’s telling you it’s done—retire it before you waste oil or stress your battery.
