Scope & Audience
This article covers empty dual-chamber disposable hardware—no oil, no cannabinoids, no finished goods. Use it to align procurement, QA, and legal on what dual-chamber really is, how it works, and which specs matter before you place a PO.
Executive Brief (Why Dual-Chamber Exists)
Dual-chamber devices give brands two independent reservoirs inside one chassis. That enables split flavors, day/night effects, or collab SKUs without changing external form factor. To deliver on those promises, the platform must keep chambers isolated, wick viscous oils reliably, and finish both sides under normal use—without cross-bleed or leaks. Your sourcing success hinges on verifying oil-path geometry, seal stack, switch logic, and battery/runtime with data, not adjectives.

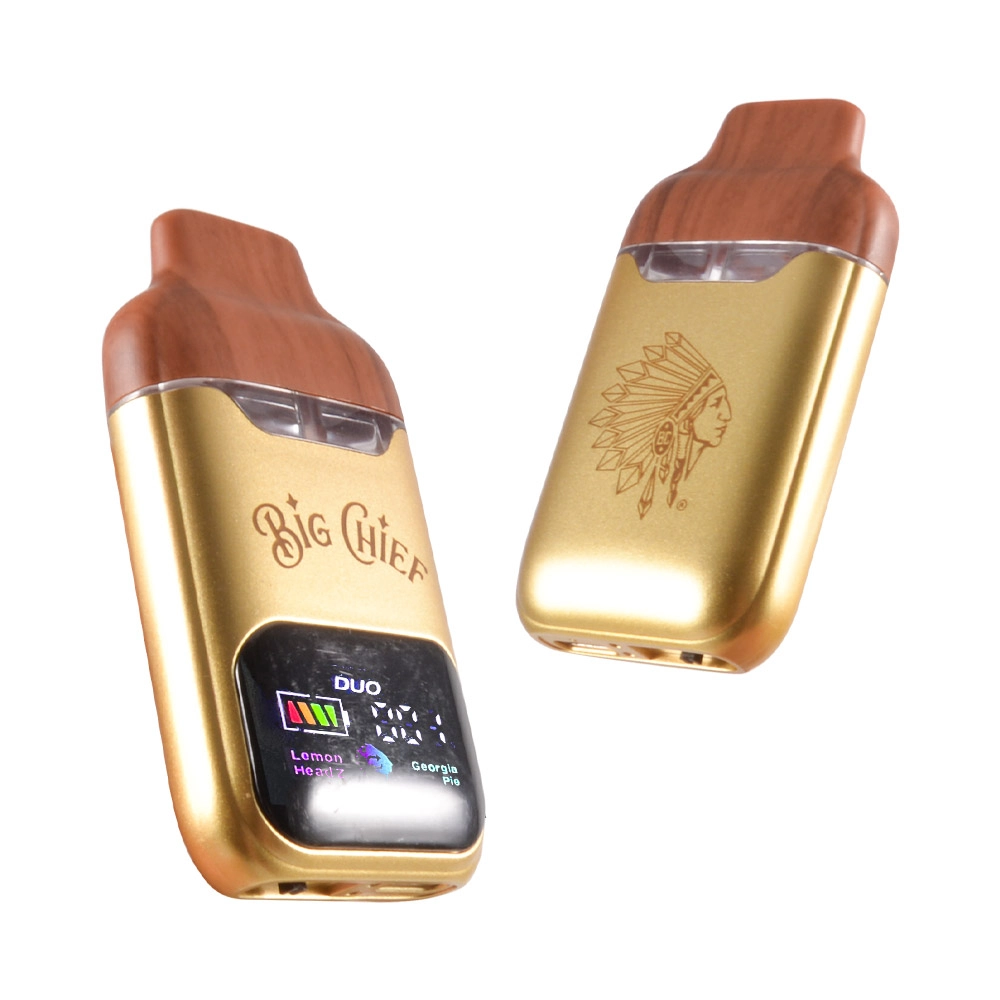

Anatomy of a Dual-Chamber Disposable (Hardware Language)
Reservoirs (L/R): Two tanks (commonly ~1.0 mL + 1.0 mL) separated by a rigid wall.
Intakes: Dedicated inlet arrays per side; diameters/positions tuned for thick oils.
Heating Elements: Two ceramic cores or a dual-headed ceramic module with thermal isolation.
Manifold & Chimney: Either a merged outlet (single mouthpiece, internal selector) or two micro-chimneys that converge above the switch.
Selector (the “switch”): Mechanical slider, tactile rocker, or electronic selection via PCB. Debounce and isolation determine reliability.
Power System: Shared rechargeable lithium cell with protections (short-circuit / over-charge / over-discharge), typically via USB-C.
Seal Stack: Gaskets, O-rings, ultrasonic welds, and mouthpiece torque keep each chamber independent and dry.
Packaging & IDs: Flat planes for warnings, batch IDs/serialization; carton labels that feed ERP/recall SOPs.
Fluid Dynamics & Isolation (Where Most Failures Start)
-
Capillary Path: Short, smooth channels lower back-pressure and accelerate saturation after cure.
-
Intake Sizing: For viscous matrices, total effective intake area and port height are decisive. Too small ⇒ “hard draw,” scorch; too low ⇒ weep.
-
Check-Valves/Barriers: Many duals use micro check-valves or baffles to prevent cross-bleed between chambers—ask how isolation is achieved.
-
Headspace Discipline: Safe-fill line + recommended soak/cure window reduces expansion-driven leaks in transit.
Sourcing test: request a cross-bleed index (ppm migration or sensory delta) after thermal cycling.
Electrical Architecture & Switch Logic
-
Mechanical Selection: Simple, tactile; depends on physical shutters/contacts. Needs debounce and firm detents.
-
Electronic Selection: PCB directs current to L/R cores; may allow auto-timeout, preheat, and fault cut-off.
-
Protections: Expect integrated safeguards plus a transport test summary for the cell/pack at time of purchase.
Sourcing test: measure left/right parity (draw resistance, output, thermal profile). Variance is a red flag.
Seal Strategy & Leak Defense
-
Gasket Compression Window: Too tight ⇒ flavor drift; too loose ⇒ headspace weep.
-
Ultrasonic Weld Lines: Clean, continuous seams resist thermal expansion during shipping.
-
Mouthpiece Torque Spec: Repeatability matters; it’s where many “good” designs start leaking.
Sourcing test: insist on pressure/air-tightness method and acceptance numbers (AQL) on finished assemblies.
Manufacturing Tolerances & QC
-
Golden Samples: Baseline dimensions/finishes for incoming inspection.
-
Color & Finish Tolerance: Prevents shelf drift between reorders.
-
Environmental Stress: Cold↔heat cycling, vibration, drop—summarized outcomes per lot.
-
RMA/CAPA: Written path for out-of-spec lots and who pays freight.
Spec Snapshot (Targets to Validate in Pilot)
-
Capacity: 2.0 mL class total (1 g + 1 g) with marked safe-fill lines
-
Coils: Dual ceramic; nominal resistance ~1.0 Ω per side (or equivalent shared module)
-
Airflow: Smooth, medium draw; consistent across L/R
-
Battery: Rechargeable lithium cell, USB-C; protections embedded
-
Switch: Positive detent; no false toggles; clear position feedback
-
Seals: O-ring + weld strategy; low variance in mouthpiece torque
-
Traceability: Batch/lot on cartons; reserved panel space for serialization
Sourcing Checklist (Copy into Your Intake SOP)
Docs – exploded views, intake diameters & positions, resistance window, fill temp/headspace/soak, switch logic, transport test summary for cell/pack, assembled-unit materials/heavy-metal results (oil-contact parts), QC regimen (pressure test + stress tests + AQLs), packaging map.
Pilot – 300–500 units; log five KPIs: post-transit leak rate, first-10-puff success, runtime to near-empty (both sides), cross-bleed index, DOA.
Decision – approve only if the device meets or beats your baseline on all KPIs; then freeze molds/BOM and set lead-time tiers.
FAQ (Fast Answers for Buyers)
Do I need unit-level IDs? Carton-level is the minimum; unit marks make recalls surgical.
What causes cross-bleed? Weak baffles, poor gasket compression, or shared chimney turbulence—fixable in design.
Why do leaks spike after shipping? Headspace + cure window + torque variance. Validate all three.
Bottom Line
A dual-chamber disposable is viable when isolation, intake, seals, and switch logic work as a system—and the vendor proves it with numbers. Pilot the platform with your oil, stress-ship it like your network does, and lock the spec that wins on leak rate, first-puff performance, runtime, and cross-bleed control. That’s how you source dual-chamber hardware with confidence.
